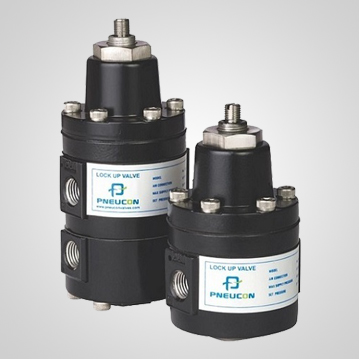

AIR LOCK-PAL500 S & PAL500 D

Air Lock Senses the main supply pressure and guarantee a steady process control when a supply air is suddenly failed by accident and its pressure becomes lower than a set pressure
ENQUIRE NOW
DOWNLOAD NOW
Signal Pressure (Max) 10 Kg/Cm² (150 Psig)
Pressure Range 1.4 ~ 7 Kg/Cm² (100 Psig)
Lock – Up Pressure (Max) 7 Kg/Cm²
Differential Pressure Below 0.1 Kg/Cm²
Flow Capacity (Cv) 0.9
Air Connection 1/4” NPT (F)
Ambient Temp -20~80ºC (-4~176ºF)
Material Aluminum Die casting
